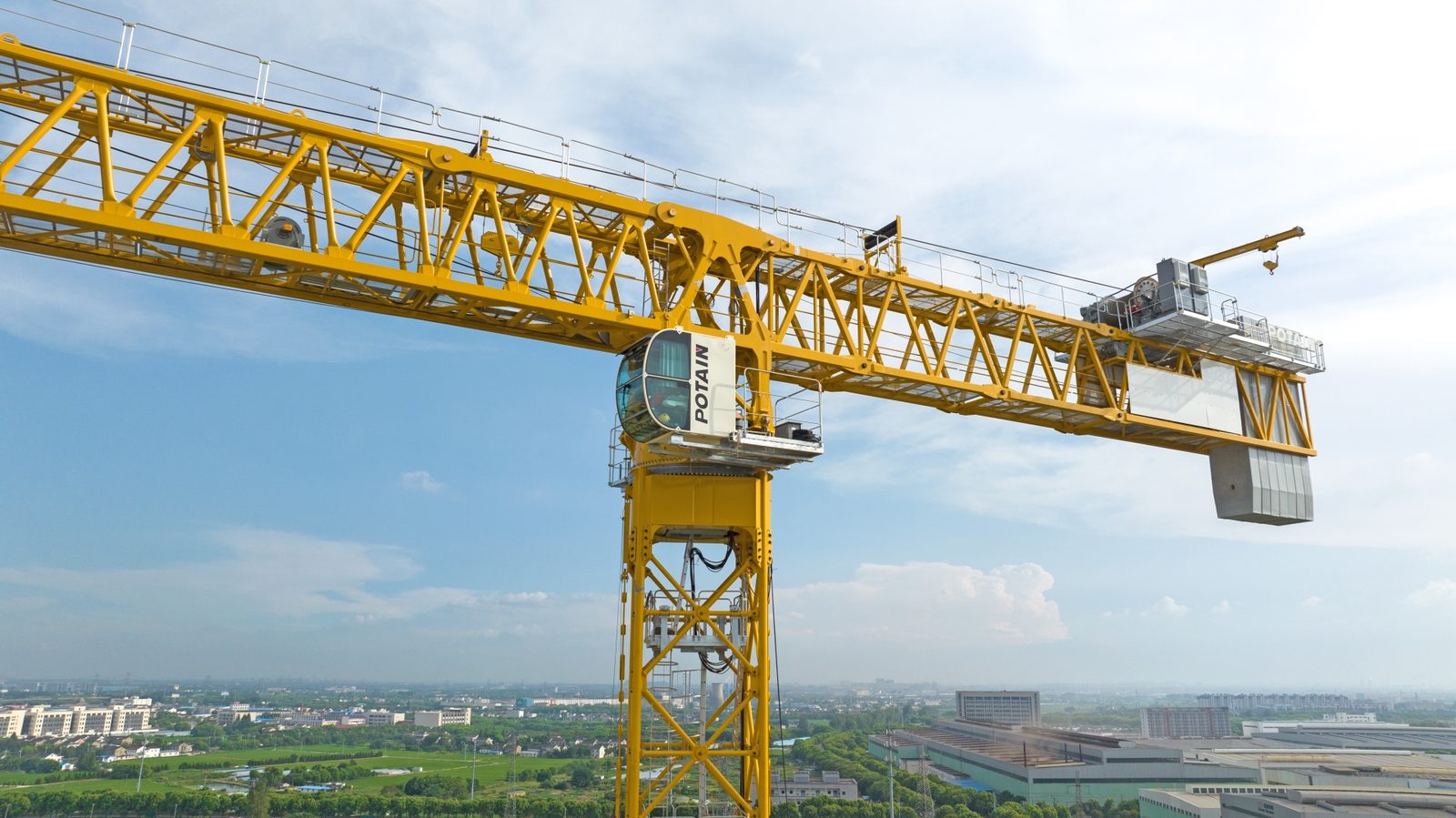

Potain flat-top tower crane
MCT2205
80 tonnes, and 23.5 tonnes at the end of an 80-metre jib. For the heaviest precast, steel and plant lifts.
80t
Max capacity
80m
Max jib
23.5t
At jib end
Specification
How it fits the range
| Model | MCT 2205 M80 |
| Type | Flat-top |
| Maximum capacity | 80 t |
| Maximum jib length | 80 m |
| Capacity at jib end | 23.5 t |
What these terms mean
- Flat-top
- The jib stays horizontal. Simpler and cheaper to erect where there is room overhead and nothing close by to swing around.
- Load curve
- How much the crane can lift at each distance from the tower. The further out the hook goes, the less it can carry.
- At jib end
- What the crane lifts at the very tip of the jib. That is the furthest reach, and the point where it carries the least.
The MCT2205 is one of 5 heavy lift cranes in our range. It is a flat-top: the jib stays horizontal, which is the simpler, quicker crane to erect where there is room overhead.

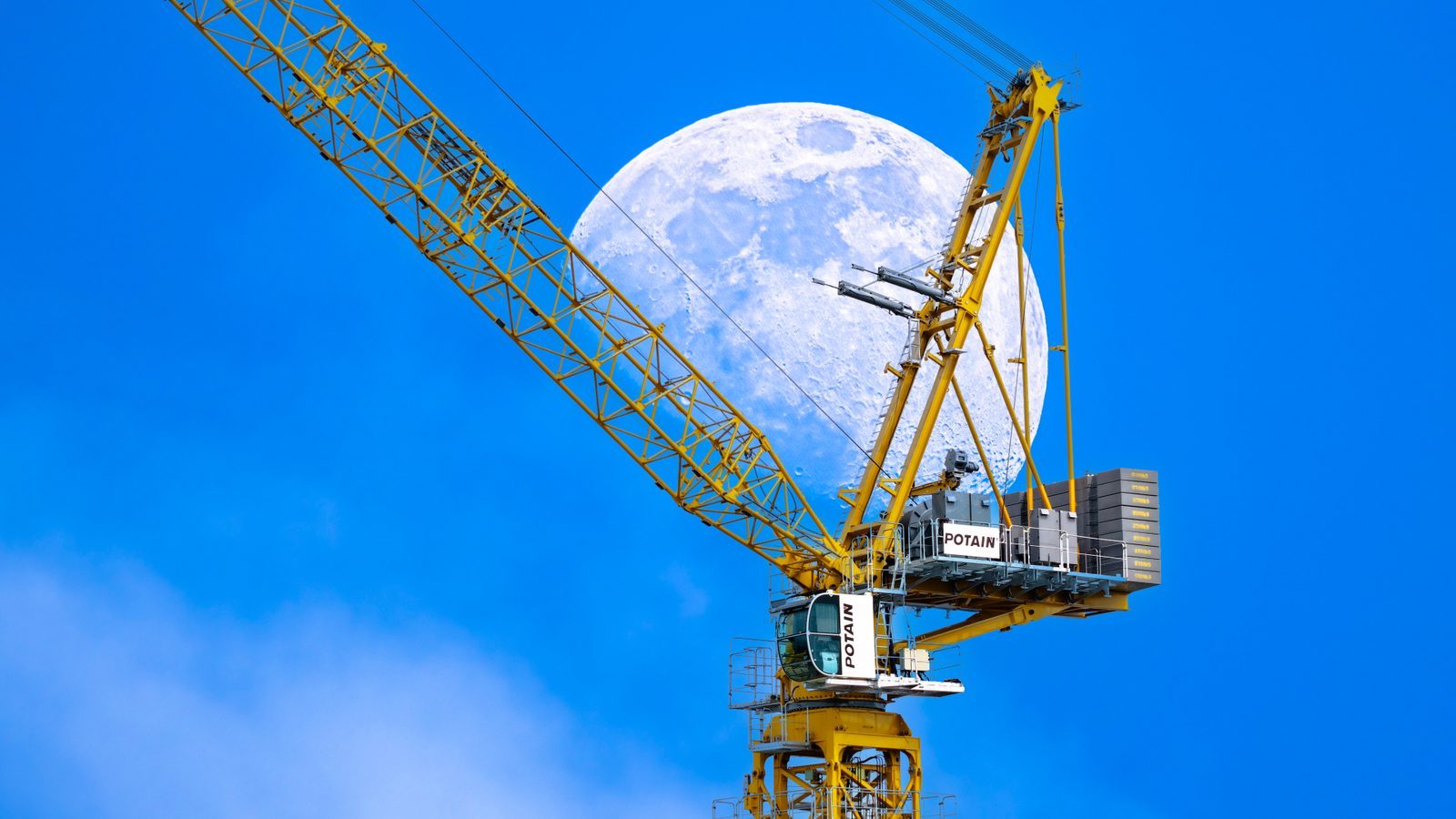

In the group, the MCR1306 is the next size up (90 t, 80.4 m jib) and the MCR815 is the next size down (64 t, 70 m jib).
Load curve
How much it lifts at each radius.
The most the MCT2205 can lift at each distance from the tower, taking the best of the jib lengths in its Potain datasheet. Hover to read any radius.
MCT2205 · best of every jib length · read from the Potain datasheet
Check the chart for your exact setup before planning a lift.
