Vertical movement of materials and personnel at each project.
Man and Materials hoists that can be customised to suit your requirements.
Three machines – multiple options

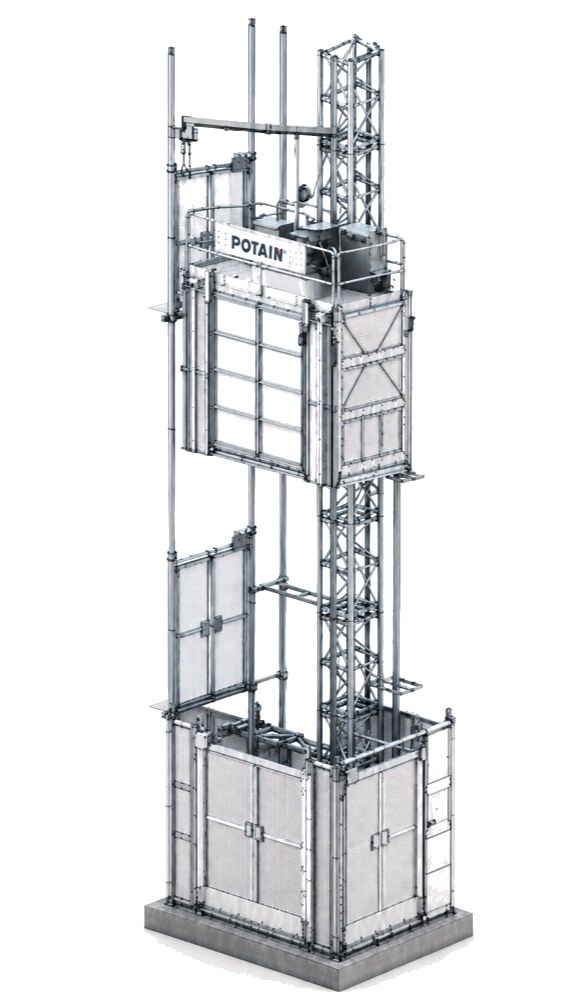

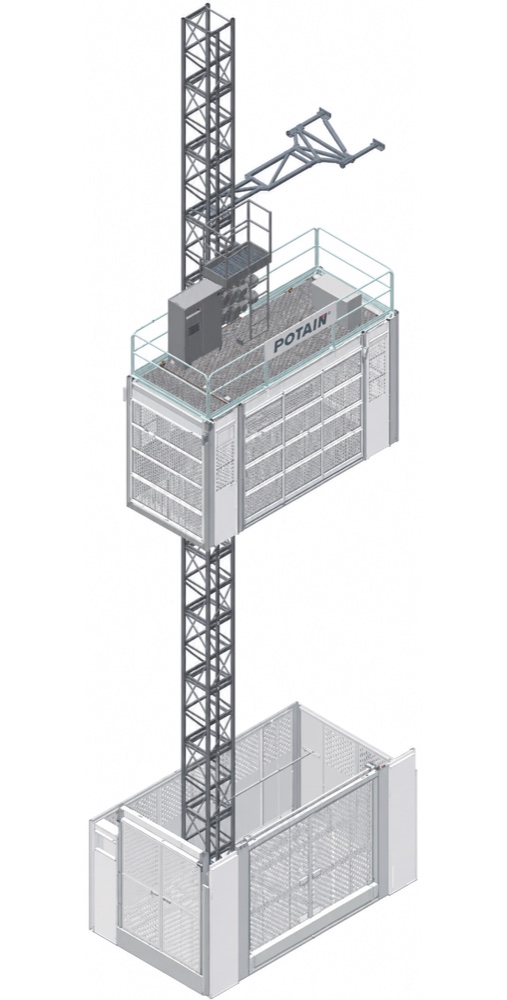

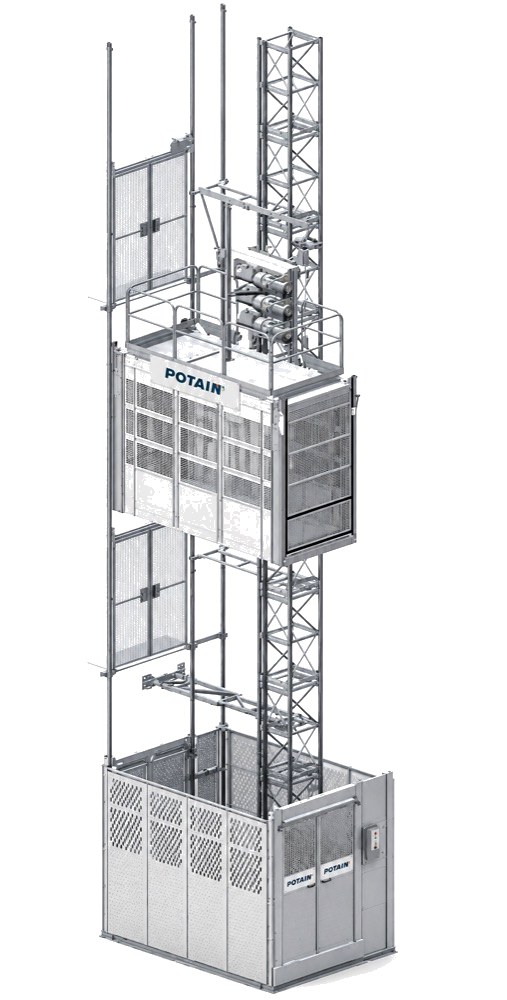

The SC220 can be setup from 2m to 3.8m, the SC300 up to 4.4m and the SC300XL to 5m.
3.2 × 1.5 × 2.3 m cage
Low current draw based on lower payload and speed
3.2 × 1.5 × 2.3 m cage
Higher payload and faster speed for larger projects
5.0 × 2.0 × 2.5/2.8 m cage
Largest available car sizes, all 2m wide for extra loading ability
Materials hoists, sized to the load.
For sites that need goods lifted without a passenger cage. Tell us the load, the height and the programme and we come back with the hoist and the price, within 2 business days.
What it takes to put one onsite
Let the TES Engineering Team look after your project to streamline your project
Mast Ties
Tied to the building at a maximum 12 m interval as it climbs.
Required Area
The ground station for a 3.2m car is 3.85×2.8 m and 5.48×3.19 m for the 5m SC300 XL.
The power is three-phase
58 A for the SC220, 125 A for the SC300 and 140 A for the SC300 XL, all frequency-controlled with a soft-start for lower startup loads.
Tell us the building. We will size the hoist.
The height, the load and the programme: that is everything sizing needs to come back with the model and the price, within 2 business days.
Every hoist is quoted per site. The mast height, the number of landings, the platforms and the length of the build all set the figure, so there is no list price.
Have a question first? Common questions about construction hoists →
